Specifications:

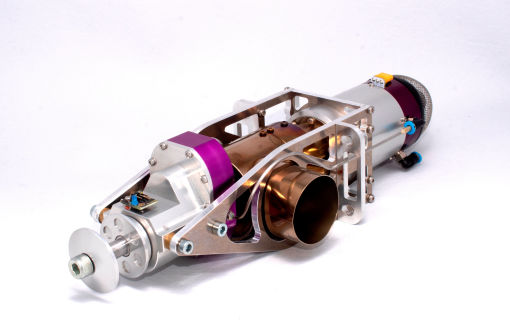

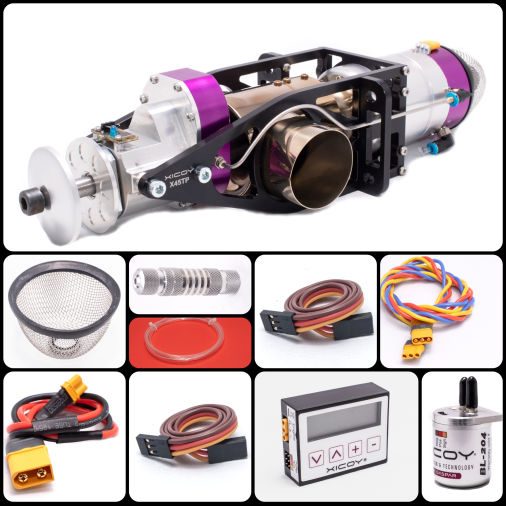

The X45 Turboprop not only has the highest power in its class, it is compact, very light and has the most advanced electronics.
Developed from the successful X45 Thrust Turbine, it incorporates a 2nd Power Stage which has been purposely designed for the X45 with two main factors in mind, reliability and performance. Unlike our competitors who use off the shelf components which are interchangeable between engines but offer no value when it comes to performance. At Xicoy, we know that to get the most performance from our engines is design each part for the task required, our secret of obtaining the maximum possible power and reliability.
Making power is relatively easy, the hard part is reliability and so the X45TP Gearbox has received some special considerations, incorporating primary and secondary shafts, supported by hybrid ceramic ball bearings, offering much higher operating cycles while adding to lesser fuel consumption due to lower lubrication requirements.
Internal Gears are hardened, straight cut and over-sized, supported by three, thirty-millimetre bearings which result in its ability to handle more power than what the core engine can deliver, ultimately the gearbox has an easier and much longer life.
Finally, the mounting system has been designed not only with full sized aircraft in mind but with our customer in mind too, with easy mounting installation. The X45TP will mount to any existing 50 to 100cc firewall with no need for painful secondary support mounts.
The electronics include an output rpm sensor which is used to protect the Engine and Propeller of overspeed by governing output RPM, as a bonus it is also Telemetry capable.
The X45 turboprop is offered in two different gearbox ratios to maximise airframe power requirements, give flexibility to the airframe and allow a wider range of Propeller combinations. The LR (low ratio) model is suitable for props turning up to 8000 RPM. The HR (high ratio) is suitable for props up to 6.500 RPM
Thanks to the low residual thrust of the X45, the idle rpm is very low, allowing a well-controlled taxi and landing.
User’s manual here
Specifications:
