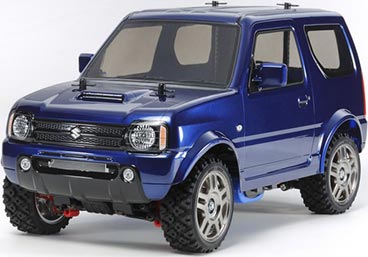

R/C Suzuki Jimny (JB23) (MF01X)

 This is the Radio Controlled, Electric Powered,
             Suzuki Jimny JB23 Off Road Vehicle Kit from Tamiya.

FEATURES: Chassis: Three-piece resin monocoque, compatible with existing
            M-chassis bodies
          Drive: Four wheel, gear driven rear wheels, dogbone with driveshaft
            driven front wheels
          Motor: Brush equipped Mabuchi RS-540 Torque Tuned
          Electronic Speed control: TBLE-02 with Tamiya type connector
          Suspension: Four wheel independent double wishbone
          Differentials: Gear type
          Tires: Rally block 1.06″ (27mm) wide, 2.7″ (69mm) diameter
          Wheels: 1.02″ (26mm) wide, 1.9″ (48mm) diameter, 5-spoke, gun-metal
            gray in color
          Body: Clear polycarbonate Suzuki Jimny JB23
          Shocks: Friction, plastic body
          Caster: Adjustable, caster/toe-in refers to the angle of the front
            suspension when viewed from the side of the car in relation to the
            chassis
          Camber: Non-adjustable
          Steering: Bellcrank type

INCLUDES: Suzuki Jimny JB23 Off Road Vehicle Kit with Brushed Motor, TBLE-02
            ESC, Tires, Wheels, Shocks, Clear Body, Decals, Instruction
            Manual, 16T Pinion Gear

REQUIRES: Radio: 2-channel with high torque steering servo
          Battery: 6-cell NiMH with Standard connector
          Battery Charger: To match selected battery
          Tools, polycarbonate safe paint, track equipment

SPECS:    Wheelbase: 8.8″ (225mm) adjustable
            Body-
          Length: 13.6″ (346mm)
          Width:   6″ (152mm)
          Height:  5.2″ (132mm)

COMMENTS: To upgrade to Ball Bearings use:
            Qty.  Size      Location               Qty.   Bearing Set
             2   5x11mm      Front Gearbox          1      DTXC1547
             2   5x11mm      Rear Gearbox           1      DTXC1547
             2   5x8mm       Driveshaft             1      DTXC1523
             2   5x11mm      Rear Axles             1      DTXC1547
             2   5x11mm      Front Wheels           1      DTXC1547
