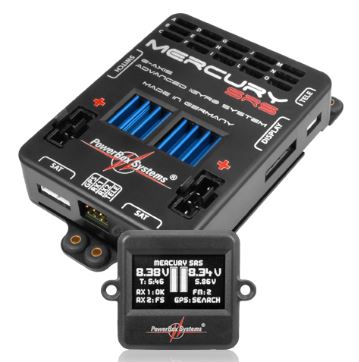

PowerBox Mercury SRS (No GPS)
PowerBox Mercury SRS (No GPS)
R8050,00
Out of stock
| Operating voltage | 4.0V – 9.0V |
|---|---|
| Integral gyro system | iGyro |
| Temperature range | -30°C bis +75°C |
| Weight of LCD screen | 15g |
| Weight Sensor Switch | 15g |
| Weight | 85g |
| Dimensions | 93 x 67 x 19 mm |
| Supported telemetry systems | P²BUS, S-Bus, M-Link, EX-Tele, DSMX, X-BUS, HoTT |
| Screen | OLED |
| Number of sensor axes | 6 |
| Gyro sensor type | MEMS |
| Gyro regulation | Attitude assist and Normalmode |
| Signal frame rate | 12ms, 15ms, 18ms, 21ms |
| Power supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Servo signal resolution | 0,5µs |
| Programmable servo outputs | 15 |
| Servo sockets | 15 |
| Channels | 15 (18) |
| Receiver redundancy | SRS |
| Supported RC systems | PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne |
| Signal input | serial |
| Output voltage | 5.9V or 7.4V regulated |
| Drop-out voltage | 0.3V |
| Maximum load current | Peak 2x20A |
| Current drain Standby | 3µA |
| Current drain Power-on state | 99mA (with OLED |
| Brand | |
| MPN | PB4120 |
