FEATURES:
Includes two magnetic nose cones to alternate between -D and -J variants
Panning nose turret and upper turret with pre-installed tiller arms
Two decal sets included inside each paint scheme’s box
Grass capable landing gear with 70mm tall nose and 85mm tall main wheels
12 screw primary assembly
Removable wings with convenient ribbon wire harness
Split flaps
Vast customization options for FPV cameras, moving turrets, doors, 3D printed detail upgrades, etc
Modeled with input from Collings Foundation, operator of last flying B-24J, “Witchcraft”
INCLUDES:

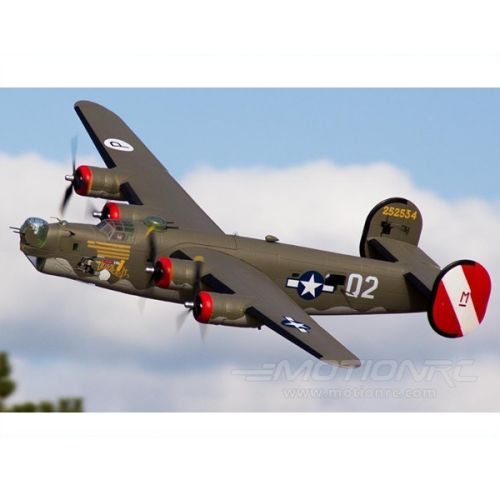

FlightLine B-24 Liberator Olive Drab 2000mm (78″) Wingspan – PNP
Motors, ESCs, servos and retracts pre-installed
REQUIRES:
6 Channel radio – select a minimum 6 channel radio from our Radio Collection
6 Channel receiver – select a minimum 6 channel receiver from our Receiver Collection
TWO 3 Cell 11.1V 5000 mAh or TWO 4 Cell 14.8V 3000 – 4000 mAh LiPo batteries with XT60 Connectors – we recommend 2 of the Admiral 4 Cell 4000mAh LiPos
4 Cell compatible battery charger – select a minimum 4 cell (4S) charger from our Charger Collection
PRODUCT SPECIFICATIONS:
AGE LEVEL : 14 AND UPSKILL LEVEL : INTERMEDIATEBUILD TIME : 3-4 HOURS
Wingspan 2000mm / 78.74in
Length 1230mm / 48.4in
Weight 2910g / 102.64oz (w/o battery)
CG (Center of Gravity) 76mm from the leading edge of the wing at the root
Power System Four 3530-860kv Brushless Outrunner Motors
Electronic Speed Control Four 30A ESC, 5A BEC, Two XT60 Connectors
Propeller / EDF 9.5 x 7 Counter-Rotating
Servos
9g hybrid gear standard with 550mm lead : nose gear steering
9g hybrid gear standard with 750mm lead : left aileron, right aileron, left elevator, right elevator
9g hybrid gear standard with 300mm lead : left flap, right flap
9g hybrid gear standard with 750mm lead plus 300mm lead : left rudder, right rudder
Landing Gear
Electronic retractable main gear and steerable nose gear with digital metal gear steering servo
Required Battery
TWO 3 Cell 11.1V 5000 mAh or TWO 4 Cell 14.8V 3000 – 4000 mAh LiPo batteries with XT60 Connectors (required)
Required Radio
6 Channel (required)
Ailerons
Yes
Elevator
Yes
Rudder
Yes
Flaps
Split
Lights
No
Hinge Type
Mixed/Nylon Reinforced
Material
EPO Foam
Skill Level
Intermediate/Advanced
Build Time
2-4 Hours
Recommended Environment
Outdoor
