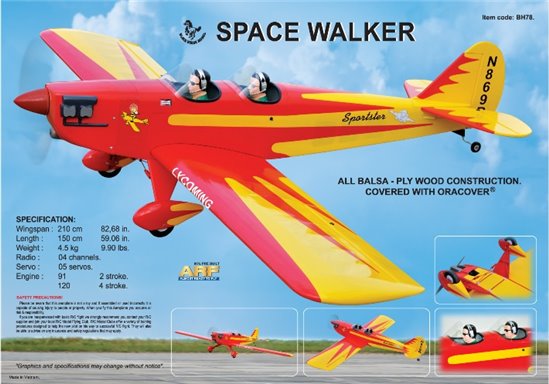

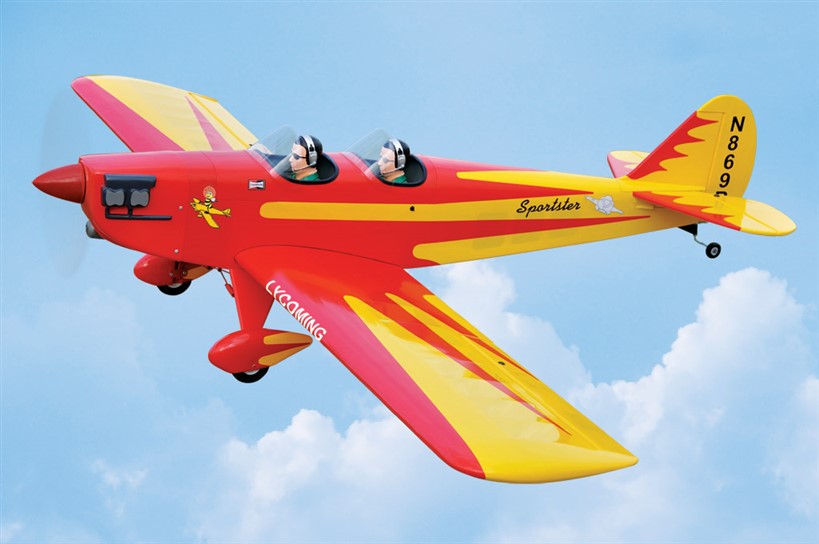

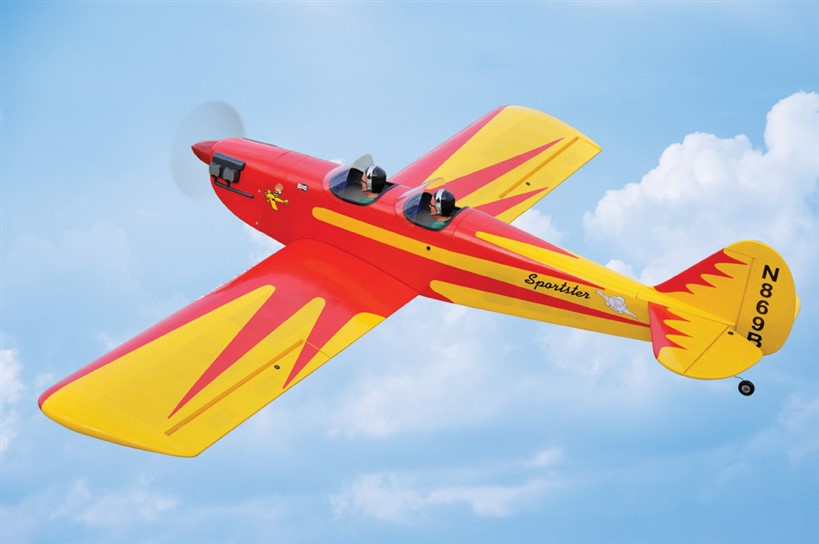

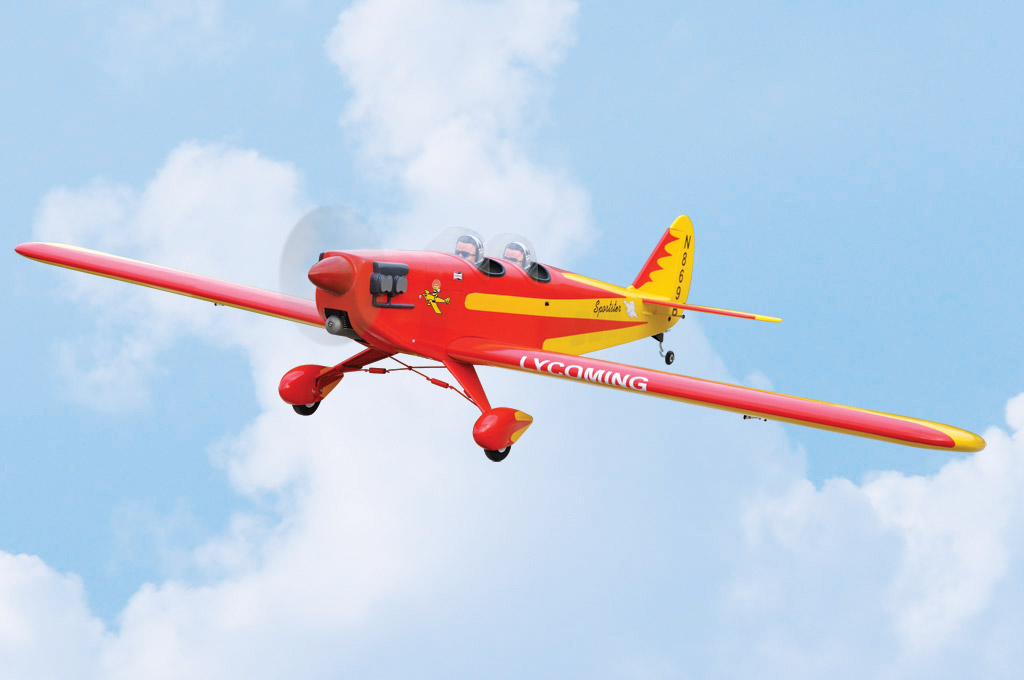

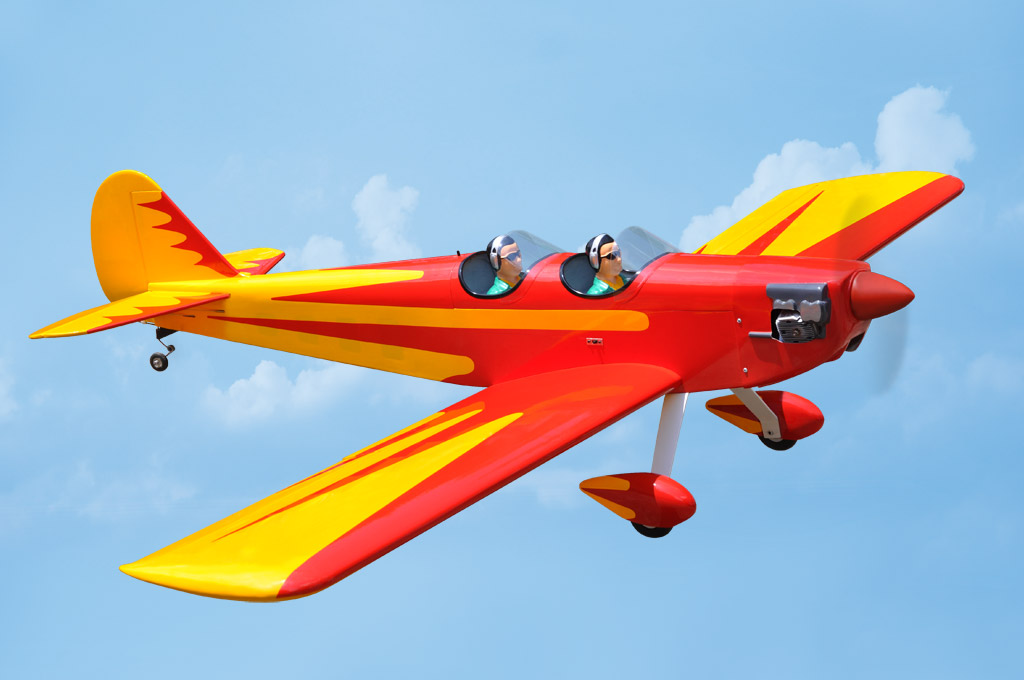

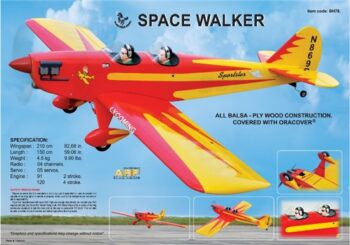

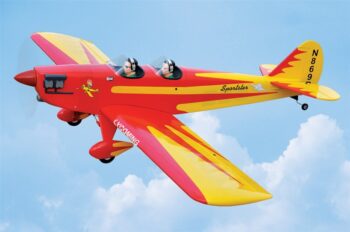

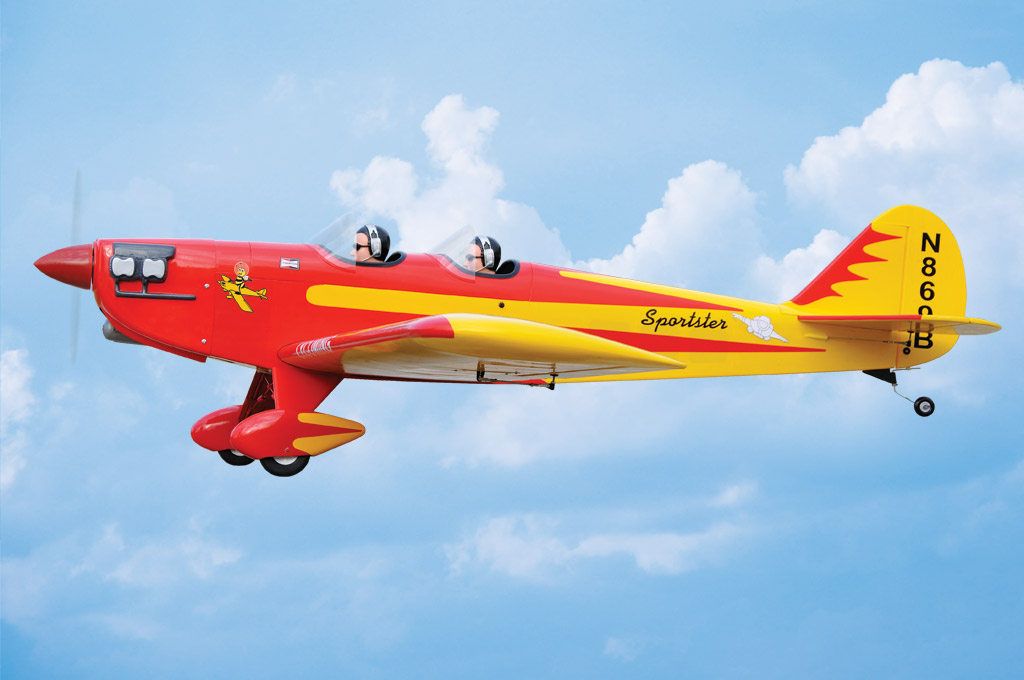

SPACE WALKER
Item code: BH78
Glow and EP
SPECIFICATION
Wingspan: 2,100mm (82,68in).
Length: 1,500mm (59.06in).
Weight: 4.5 kg (9.90lbs).
Wing area: 69dm2.
Wing loading: 65 g/dm2.
Wing type: Naca Airfoil.

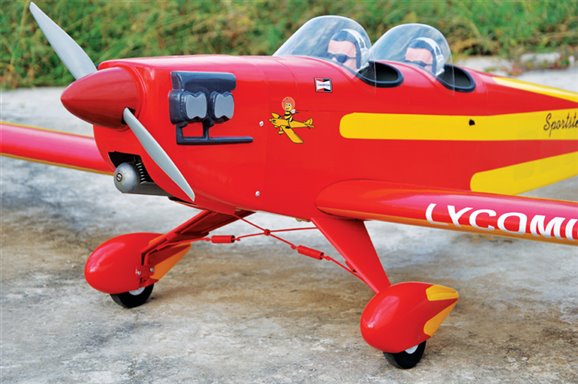

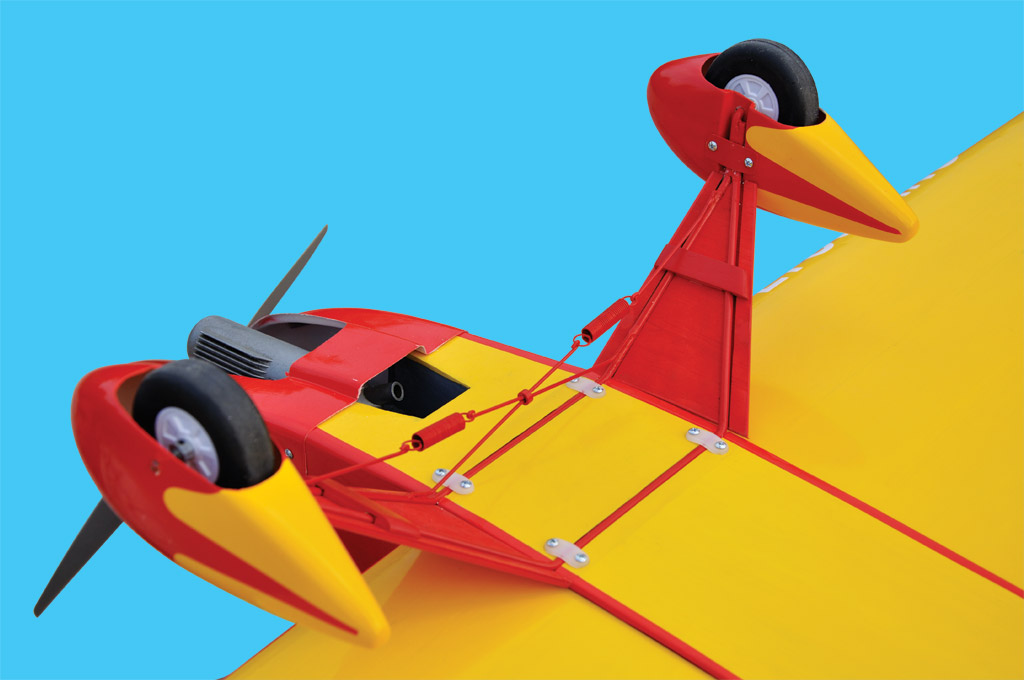

Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear(included).
Parts listing required (not included):
Radio: 04 channels.
Servo: 05 servos.
Servo mount: 42mm x 21mm.
Engine: 120 – 4 strokes; O.S.GT 22cc Gas.
Motor: Brushless outrunner 1300-2200W, 500KV.
Propeller: Suit with your engine.
Recommended motor and battery set up (not included):
Motor: RIMFIRE.80.
Lipo cell: 6 cells 4,000-5,000mAh
ESC: 80A.
Receiver battery: 4.8-6V/ 1200-2000mAh NiMH.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
