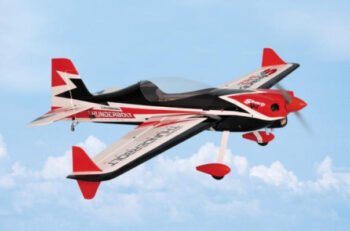

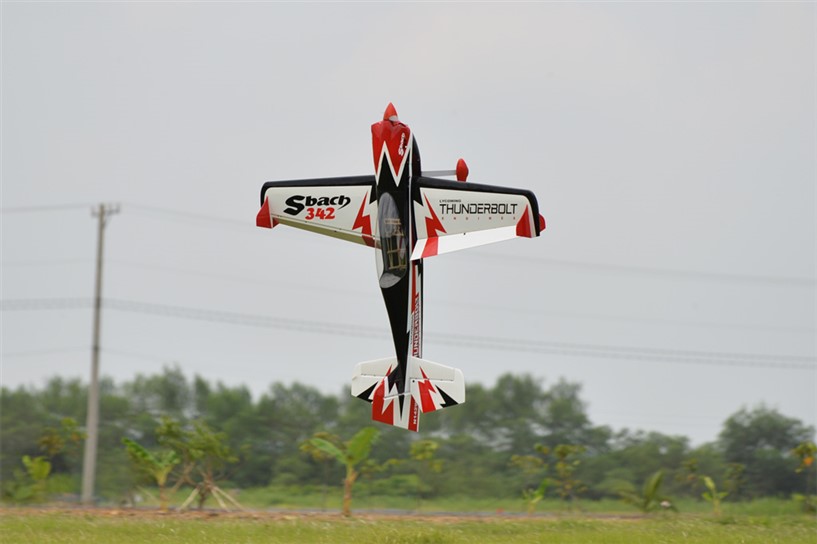

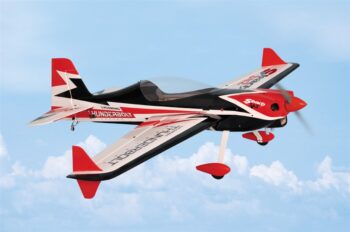

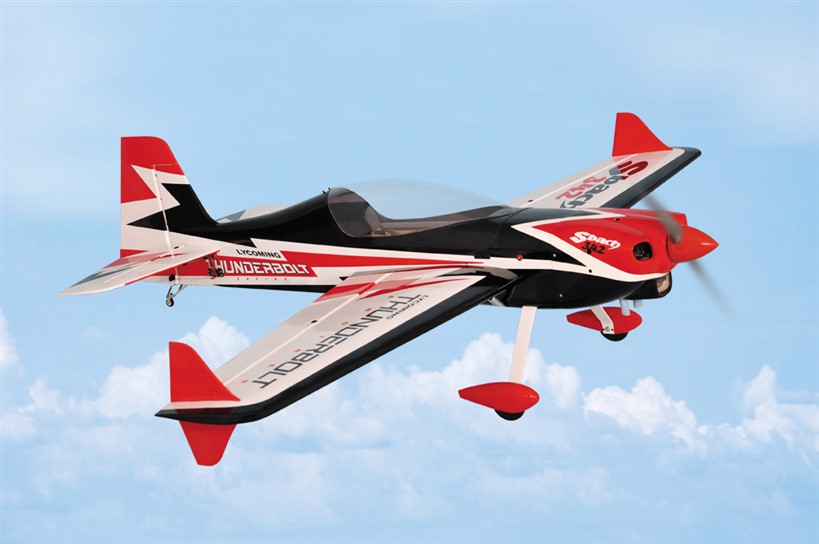

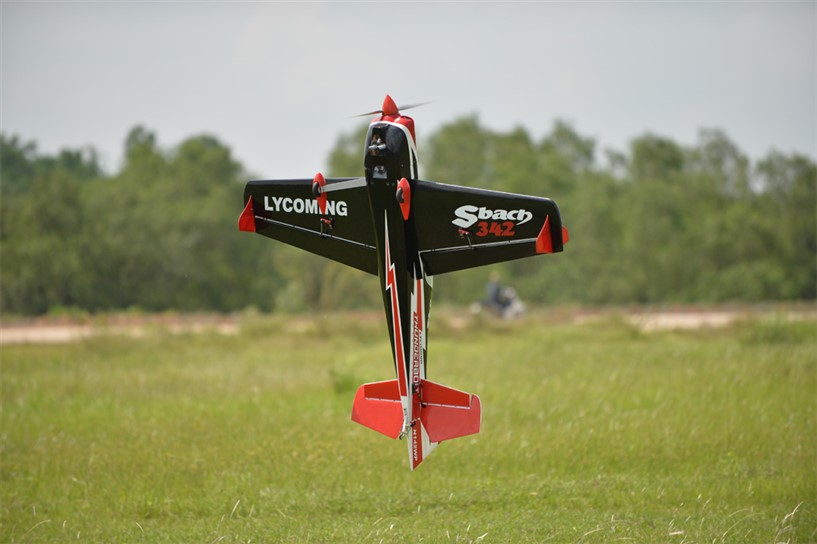

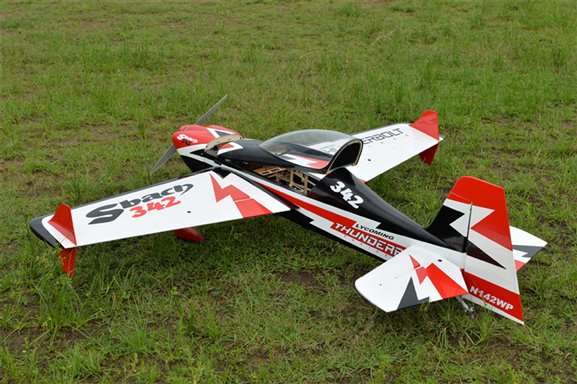

SBACH 342
Scale : 27%
Item code: BH174.
Glow and EP
SPECIFICATION:
– Wingspan: 2,000mm (78.74in).
– Length: 1,890mm (74.41in).
– Weight: 5.5 – 5.7kg (12.1 – 12.54 lbs).
– Wing area: 79.3 dm2.
– Wing loading: 69.36g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: 42mm x 21mm.
– Gear type: Aluminium Hi-grade for main gear and tail gear (included).
Parts listing required (not included):
– Radio: 06 channels.
– Servo: 06 servos (HV High torque steel gear servo).
– Engine: 33 – 35 cc gas.
– Motor: Brushless outrunner 2500 – 3200W, 250KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.1.60.
– Lipo cell: 12 cells 4,000-5,500mAh.
– Receiver battery: 6-7.4V/ 1200-2200mAh.
– ESC: 80 – 100A.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
