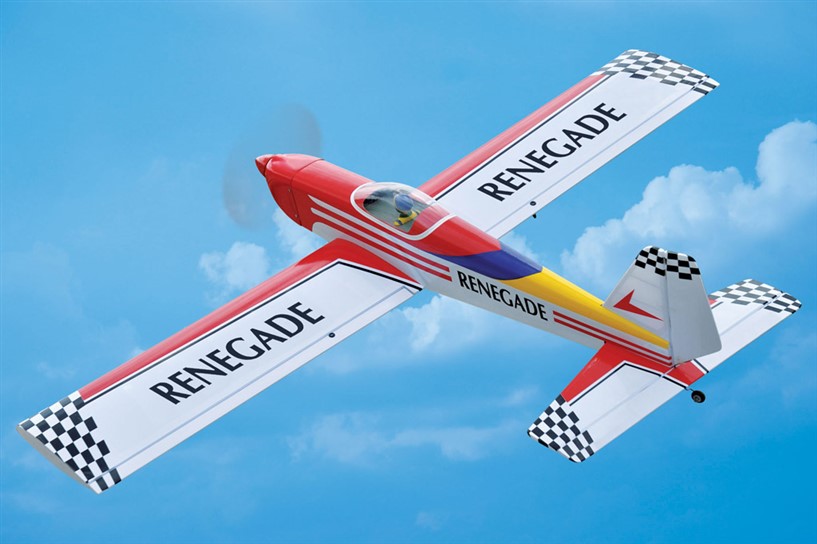

RENEGADE
Item code: BH66
Glow and Ep
SPECIFICATION:
– Wingspan: 1,580 mm (62.20 in).
– Length: 1,255 mm (49.41 in).
– Weight: 2.5 kg (5.50 lbs).
– Wing area: 42.7dm2.
– Wing loading: 58.55g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: 42mm x 21mm.
– Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).
– Spinner: 58 mm.
Parts listing required (not included):
– Radio: 04 channels.
– Servo: 04 – 05 servos.
– Glow Engine: 46 – 55 cu.in 2 stroke.
– Motor: Brushless outrunner 1000-1800W, 800KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.55.
– Lipo cell: 6 cells 4,000-5,000mAh.
– ESC: 60A.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED IN A HEAT – SHRINK FILM WITH PRINTED.
