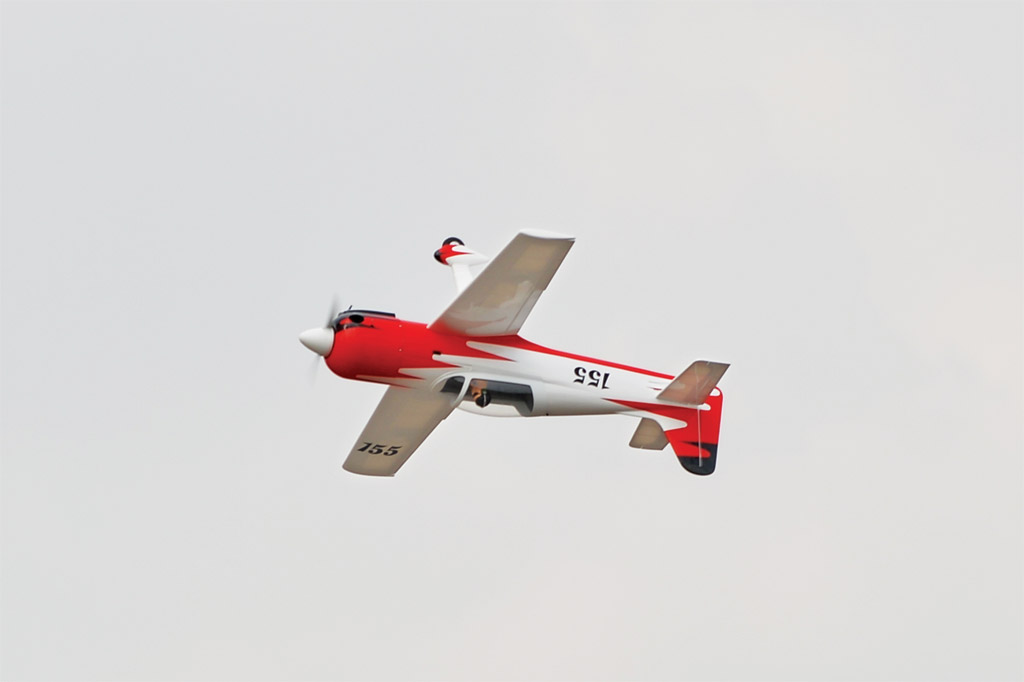

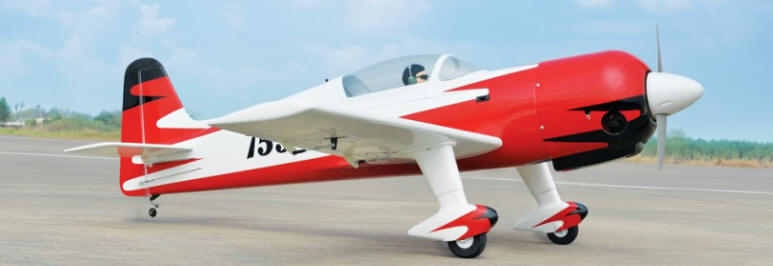

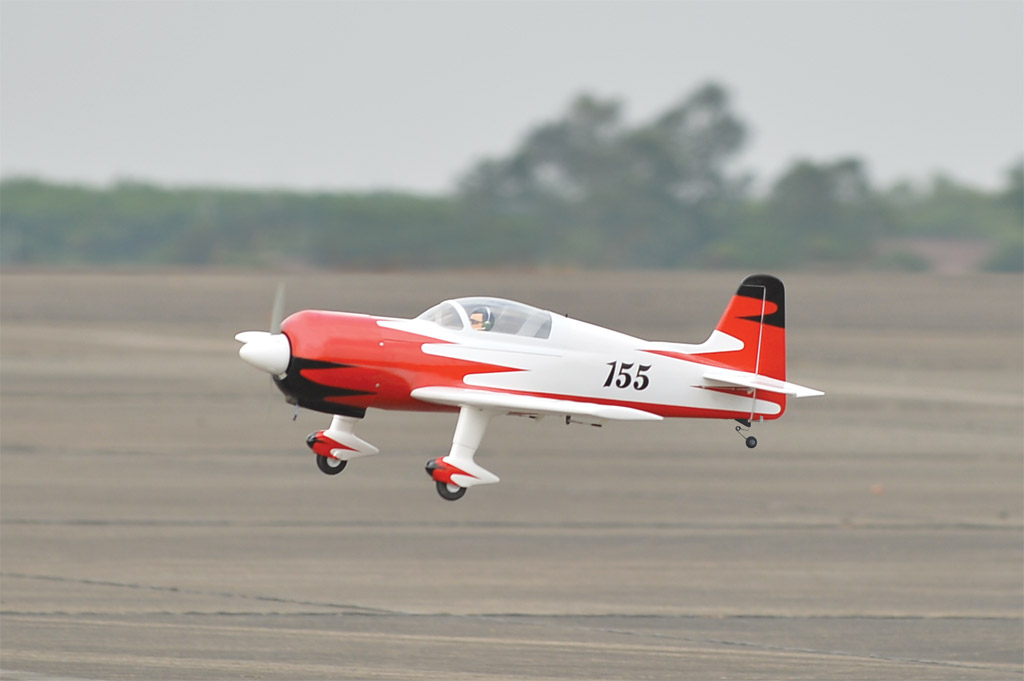

RADIAL ROCKET
Item code: BH155.
Glow and EP
SPECIFICATION:
– Wingspan: 1,410 mm (55.51 in).
– Length: 1,235 mm (48.62in).
– Weight: 3 – 3.2kg ( 6.6 – 7.04lbs).
– Wing area: 29.7dm2.
– Wing loading: 104.5g/dm2.
– Wing type: Naca Airfoil.
– Servo mount: 42mm x 21mm.
– Spinner: 80mm.
Parts listing required (not included):
– Radio: 05 channels.
– Servo: 07 servos.
– Engine: 46 – 55 – 2 stroke.
– Motor: Brushless outrunner 1000-1800W, 800KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.55 .
– Lipo cell: 6 cells 4,000-5,000mAh.
– ESC: 60A.
– Receiver battery: 6V/ 1200-2000mAh NiMH.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
