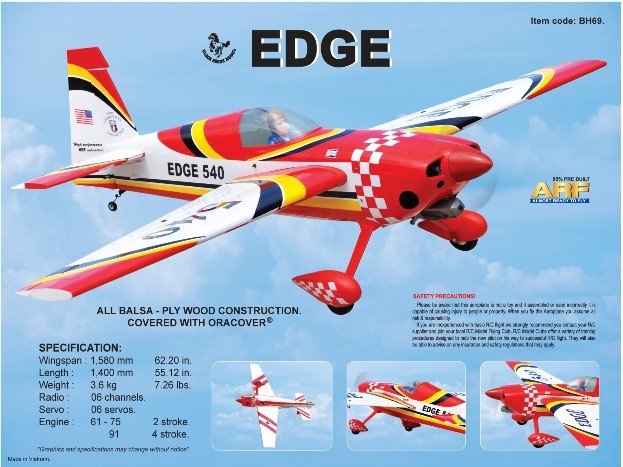

EDGE 540
Item code: BH69
Glow and EP
SPECIFICATION:
– Wingspan: 1,580 mm (62.20 in).
– Length: 1,400 mm (55.12 in.)
– Weight: 3.6 kg (7.26 lbs).
– Wing area: 45.2dm2.
– Wing loading: 79.65g/dm2.
– Servo mount: 42mm x 21mm.
– Wing type: Naca Airfoil.
– Spinner: 70 mm.
– Gear type: Aluminium Hi-grade for main gear and spring wire for tail gear (included).
Parts listing required (not included):
– Radio: 06 channels.
– Servo: 06 servos.
– Engine: 65 – 75 2 stroke; 15 cc gas.
– Motor: Brushless outrunner 1200-2200W, 650KV.
– Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
– Motor: RIMFIRE.60.
– Lipo cell: 6 cells 4,000-5,000mAh.
– Receiver battery: 6V/ 1200-2000mAh.
– ESC: 80A.
ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER.
