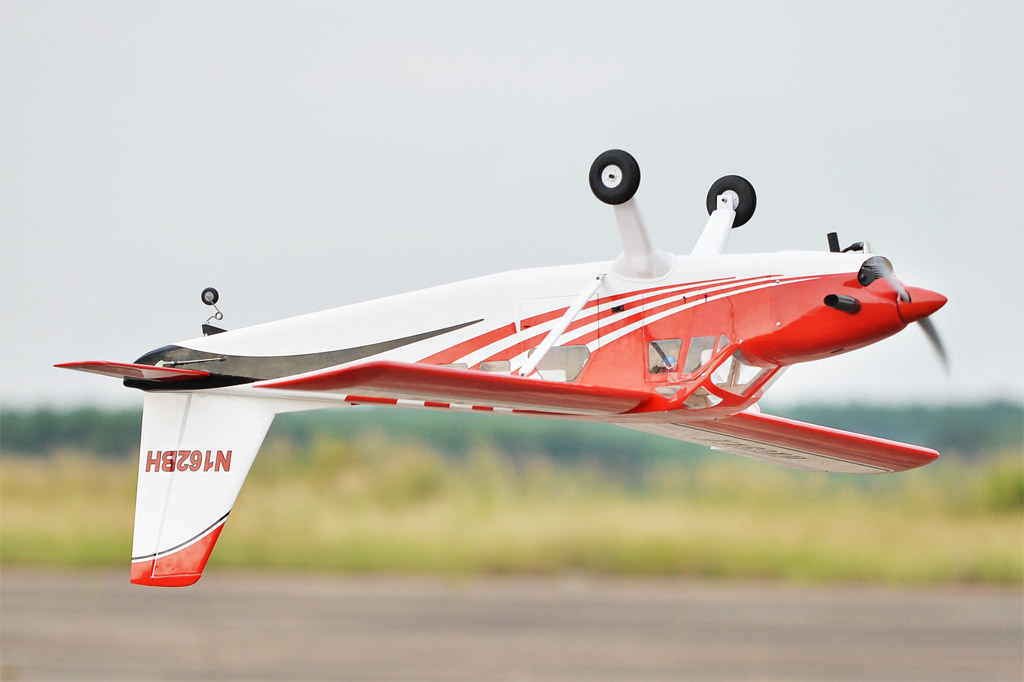

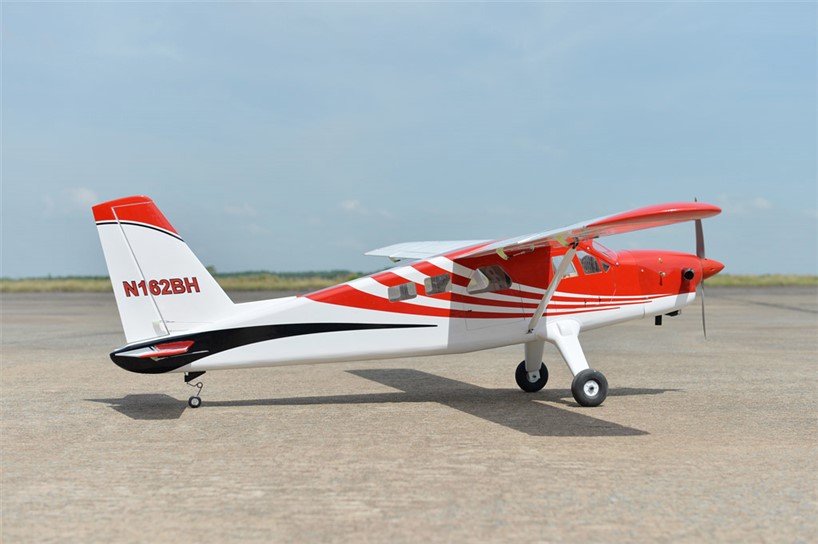

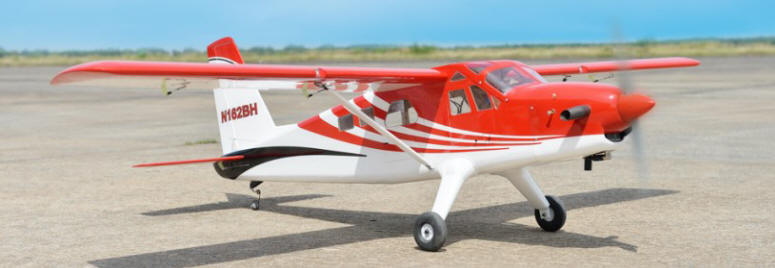

Black Horse Beaver 20-30cc

TURBO BEAVER
Item code: BH162.
Glow and EP

SPECIFICATION:
–       Wingspan : 2,250 mm (88.58 in).
–       Length : 1,675 mm ( 65.94 in).
–       Weight : 5.5kg (12.1lbs).
–       Wing area: 59.7 dm².
–       Wing loading: 92.1g/dm².
–       Wing type: USA 35-B Airfoil.
–       Servo mount: 42mm x 21mm.
–       Gear type: Aluminium Hi-grade for main gear
         and spring wire for tail gear (included).

Parts listing required (not included):
–       Radio: 06 channels.
–       Servo: 08 servos.
–       Engine: 20 – 30cc Gas.
–        Motor: Brushless outrunner 1800-2300W, 450KV.
–       Propeller: Suit with your engine.

Recommended motor and battery set up (not included):
–       Motor:  RIMFIRE.120.
–       Lipo cell: 6 cells 4,000-5,000mAh.
–       ESC: 80A.
–       Receiver battery: 6V/ 1200-2000mAh NiMH.

ALL BALSA – PLY WOOD CONSTRUCTION.
COVERED WITH ORACOVER
