AR9030T 9CH Air Telemetry Receiver

Key Features

Compatible with all Spektrum DSMX transmitters
Compact design fits most parkflyer size and larger aircraft
Capable of 11ms frame rates
Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion
Receiver pack voltage and flight log data available without the need for additional sensors
Dual antennas for optimal RF performance

Overview

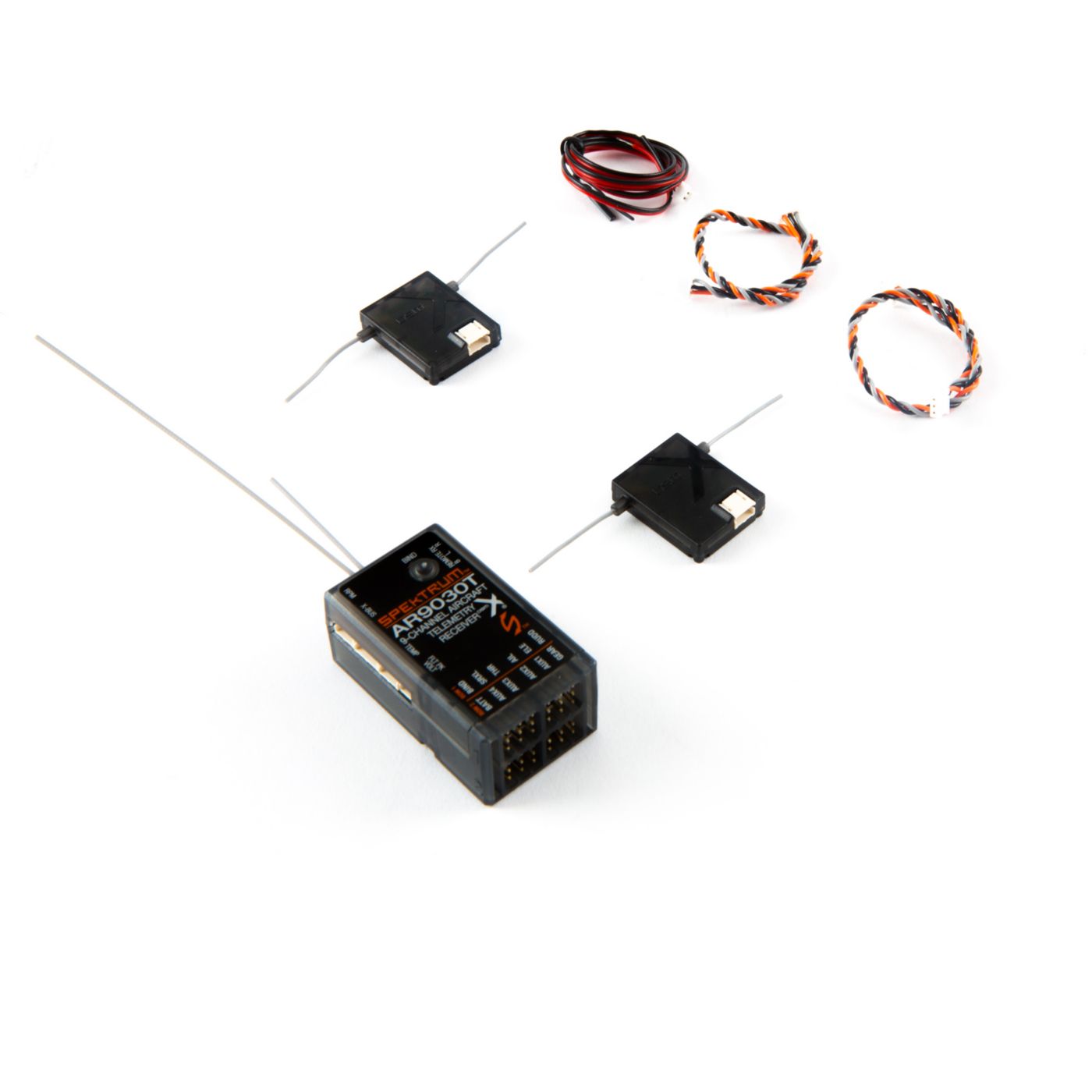

The AR9030T receiver is a feature-packed, 9-channel receiver with integrated full-range telemetry. The AR9030T features built-in connection ports for RPM, Flight Pack Voltage, and Temperature sensors as well as an X-Bus port for additional telemetry options. No sensor is required to receive flight log or receiver pack voltage telemetry data. If you have a DSMX/DSM2 transmitter capable of 11ms frame rates, the AR9030T receiver will deliver lightning-fast input-to-output response that is perfect for high-performance applications like 3D helis and airplanes. The AR9030T includes 2 DSMX remote receivers that allows you take advantage of Spektrum MultiLink technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.

Specs

Band: 2.4GHz
Bind Method: Bind Button
Channels: 9
Data Port: Yes
Failsafe: Yes
Flight Log Compatible: Yes
Governor: No
Height: 0.82 in (20.9 mm)
Input Voltage: 3.5-9V
Length: 1.91 in (48.5 mm)
Model Type: Multirotor,Sailplane,Helicopter,Airplane
Modulation: DSMX,DSM2
Number of Receivers: 3
Range: Full
Resolution: 2048
Rev Limiter: No
Telemetry: Yes
Type: AR9030T 9 Channel Air Telemetry Receiver
Water-Resistant: No
Weight: 0.63 oz (17.83 g)
Width: 1.11 in (28.3 mm)
XPlus Compatible: No
