AR20310T 20-Channel PowerSafe Integrated

Key Features

• Sensor port allows the receiver to be upgraded with future Spektrum add-ons


• Compatible with all Spektrum DSM2 and DSMX transmitters


• Rubber grommet hard mounts and minimalistic labelling helps produce the cleanest model setups


• Capable of 11ms frame rates


• Binding is easier than ever by Binding through a button or familiar bind plug


• Integrated telemetry with built-in ports for RPM, flight pack voltage, temperature sensors and X-bus for telemetry sensor expansion


• Receiver pack energy & voltage sensor and flight log data available without the need for additional sensors


• PowerSafe redundancy system with dual 13 AWG battery leads w/ EC3 connectors. Perfect for power hungry aircraft and high current applications


• Not compatible with DSM2 AIRMOD JR Module (SPMMSJR720)

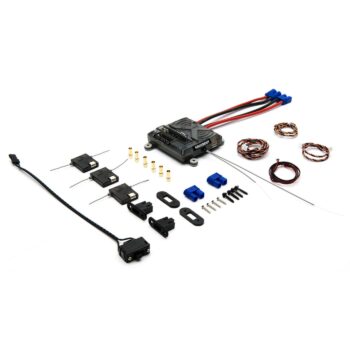

What’s in the box?

• (3) DSMX Remote Receivers


• (1) 9″ Remote Receiver Extension


• (1) 12″ Remote Receiver Extension


• (1) 24″ Remote Receiver Extension


• (2) Battery EC3 Connectors


• (2) Charge Receptacles


• (1) Aircraft Telemetry Volt Sensor


• (1) Soft Switch


• (1) Instruction Manual

Overview

The Spektrum™ AR20310T PowerSafe receiver is a feature-packed 20 channel receiver with integrated full-range telemetry. Each comes with built-in connection ports for RPM, Flight Pack Voltage and Temperature sensors as well as an X-Bus port for additional telemetry options.If you have a DSMX®/DSM2® transmitter capable of 11ms frame rates, the AR20310T will deliver a lightning-fast input-to-output response that is perfect for high-performance applications such as aggressive 3D , IMAC, and Turbine Airplanes. Each receiver includes 2 remote receivers that take advantage of Spektrum MultiLink™ technology. This patented technology eliminates the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems.A ground-breaking feature introduced on the AR20310T PowerSafe Receiver is the built-in receiver battery energy sensors. Giving pilots added awareness of the load and mAh used by the servos, retracts, lights, etc. used by each battery. Current Gen 2 Radio firmware already supports this function. Also, as with most of the current receiver lineup, these feature a bind button that gives pilots an easy alternative to the age-old bind plug.

Specifications
