The spinner series for aerodynamic top performance.
The Z spinners combine the advantages of the CN spinner (cool nose with cooling air openings) and the cranked Z center pieces. Due to the angled middle pieces made of aluminum, the folding propeller blades fit even closer to the fuselage and thus ensure less air resistance during gliding. The spinners with the middle pieces are designed for slim e-sailor hulls, but can also bring advantages, for example, with wooden hulls in box construction, if they are sanded round.
The middle pieces of the spinner sizes 38, 40 and 42mm are interchangeable, for example 38mm spinner caps can be operated with the middle piece of the 42mm spinner. These combination options result in further optimization potential, as this enables a finer adjustment to the respective fuselage.

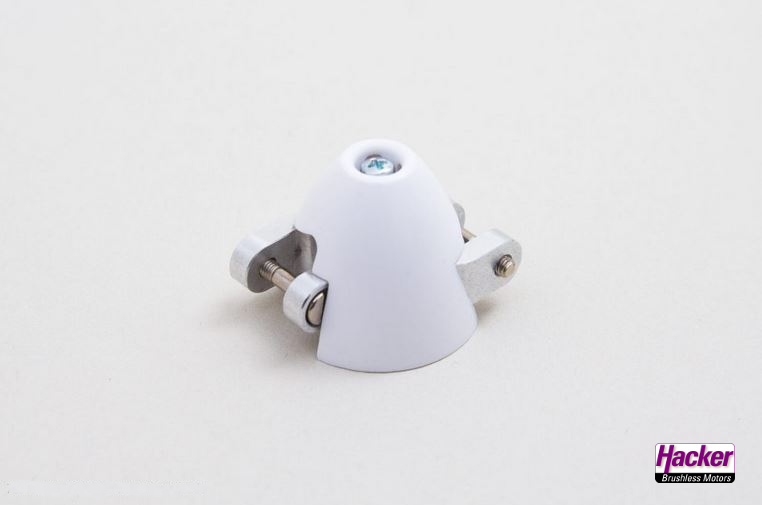

The Z-Spinner contains a spinner cap (diameter 40mm) made of white plastic (very easy to paint), a milled aluminum center piece with an integrated holder for the clamping cone, special prop rubber for folding the propeller blades, mounting screws for the spinner cap and propeller blades.
IMPORTANT: An additional clamping cone must always be purchased to match the motor shaft used. You can find these in the section: Clamping cone for Z-spinners
